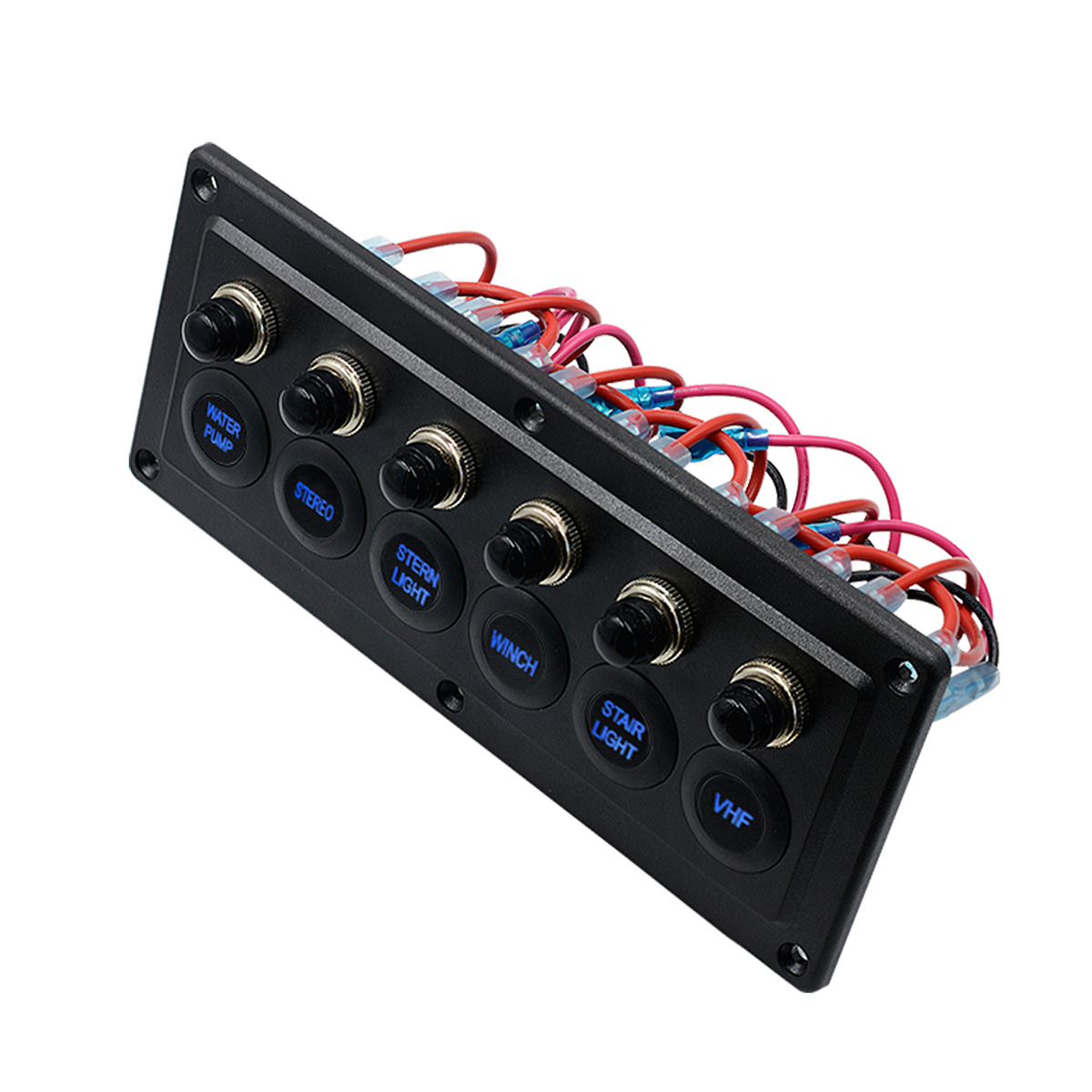

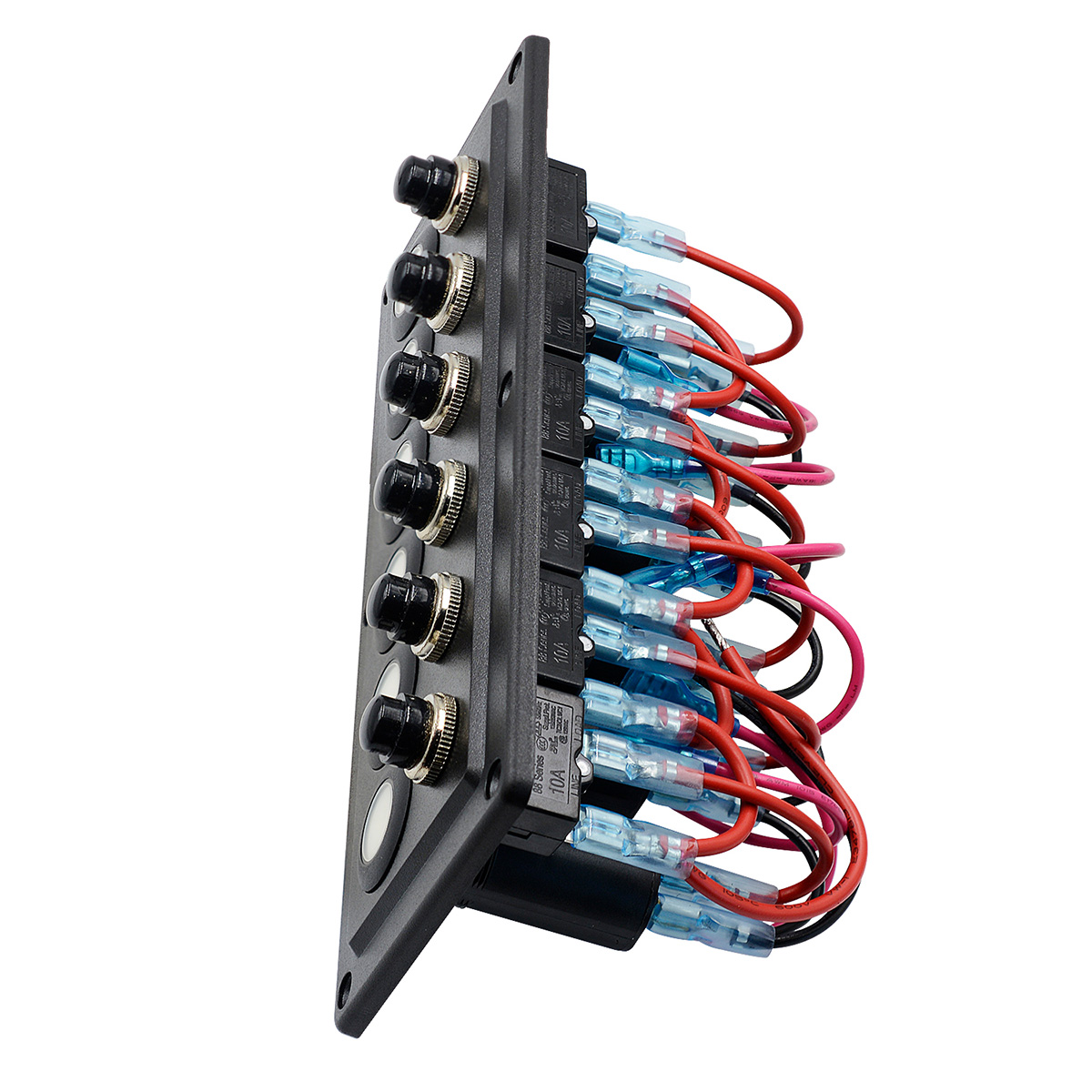

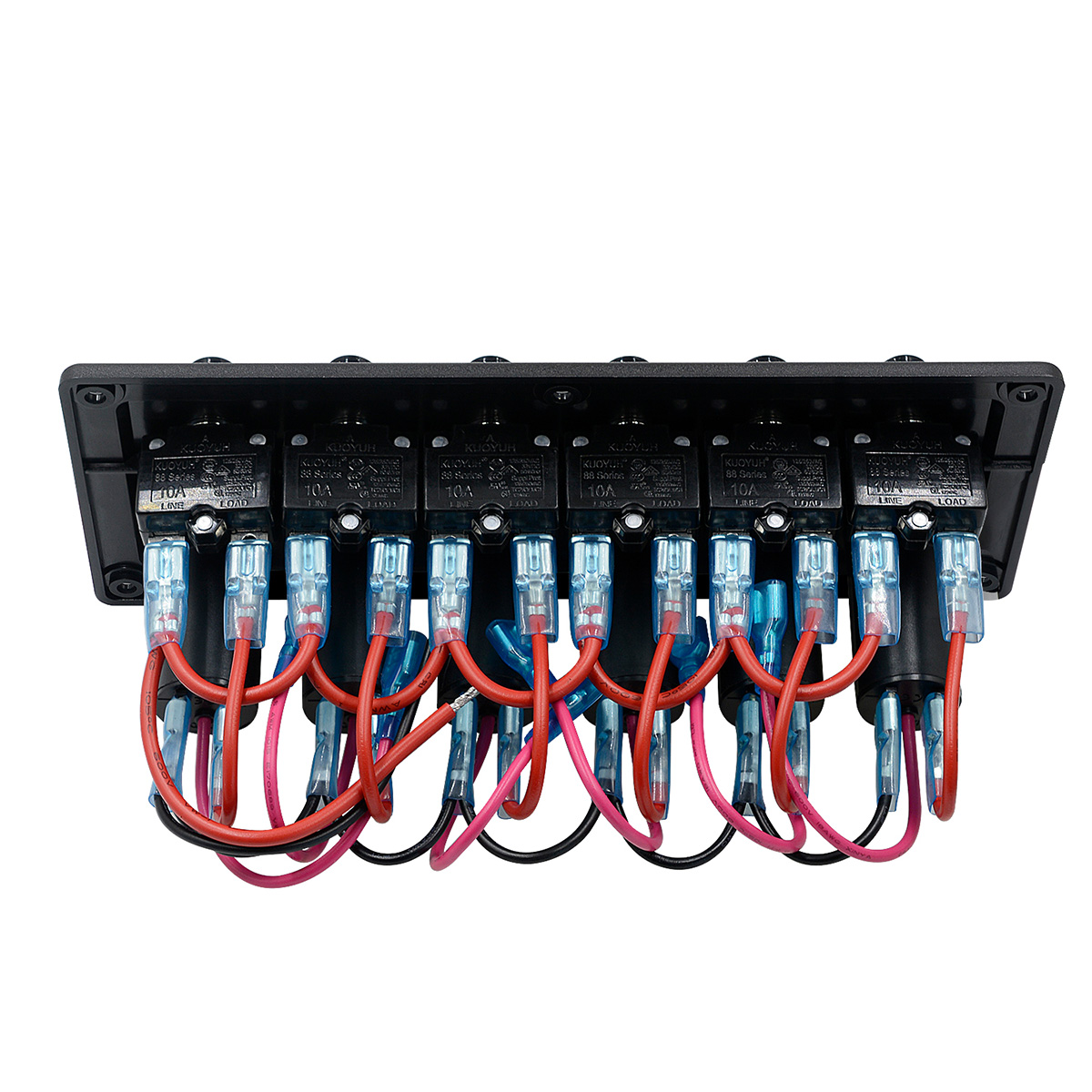

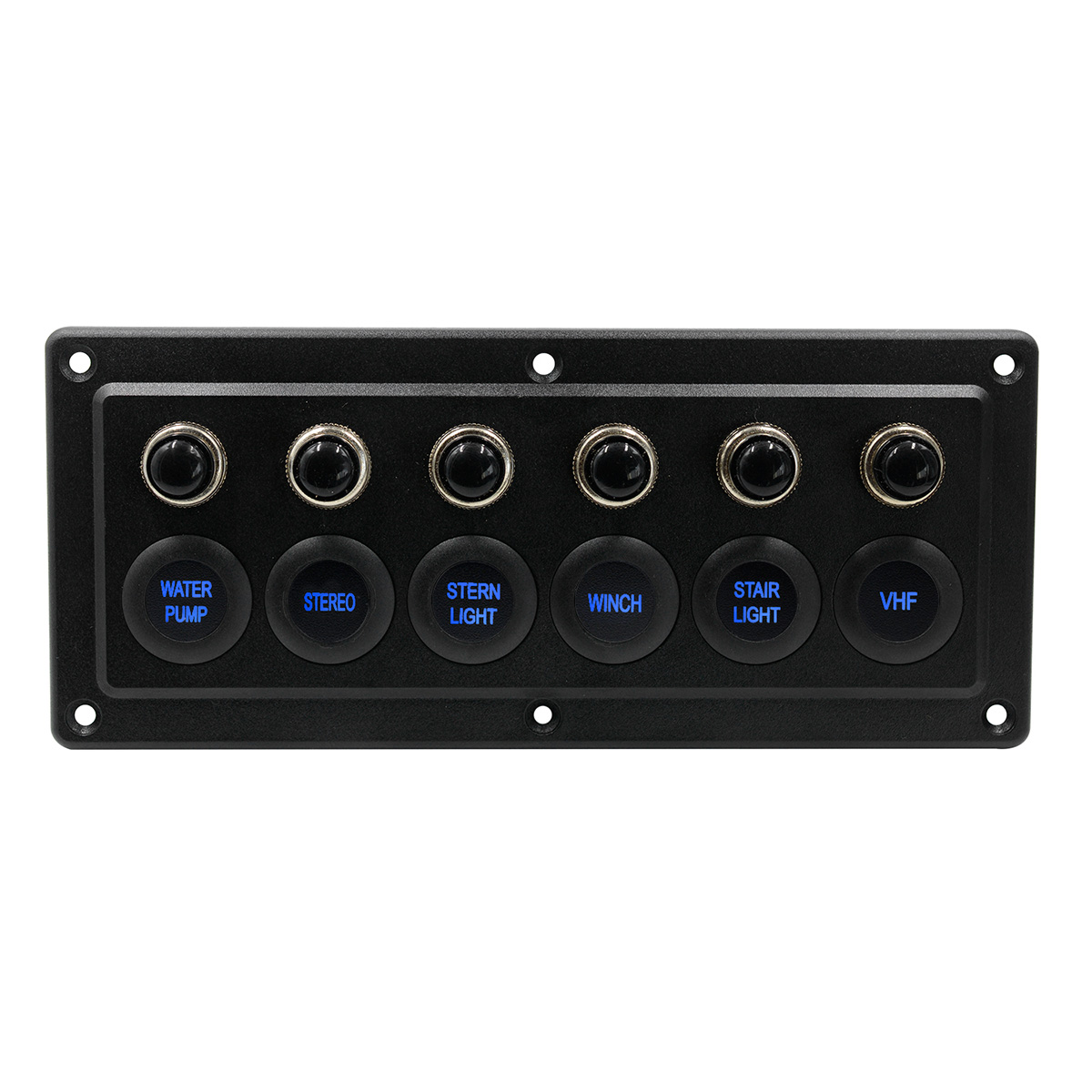

6 Connectors Control Panel For lights

Part No. CS-976A2
Colors Black
Colors of indicator lights white + Blue
Input voltage DC 12-24V
Waterproof IP65
Approved CE
Weight 448g

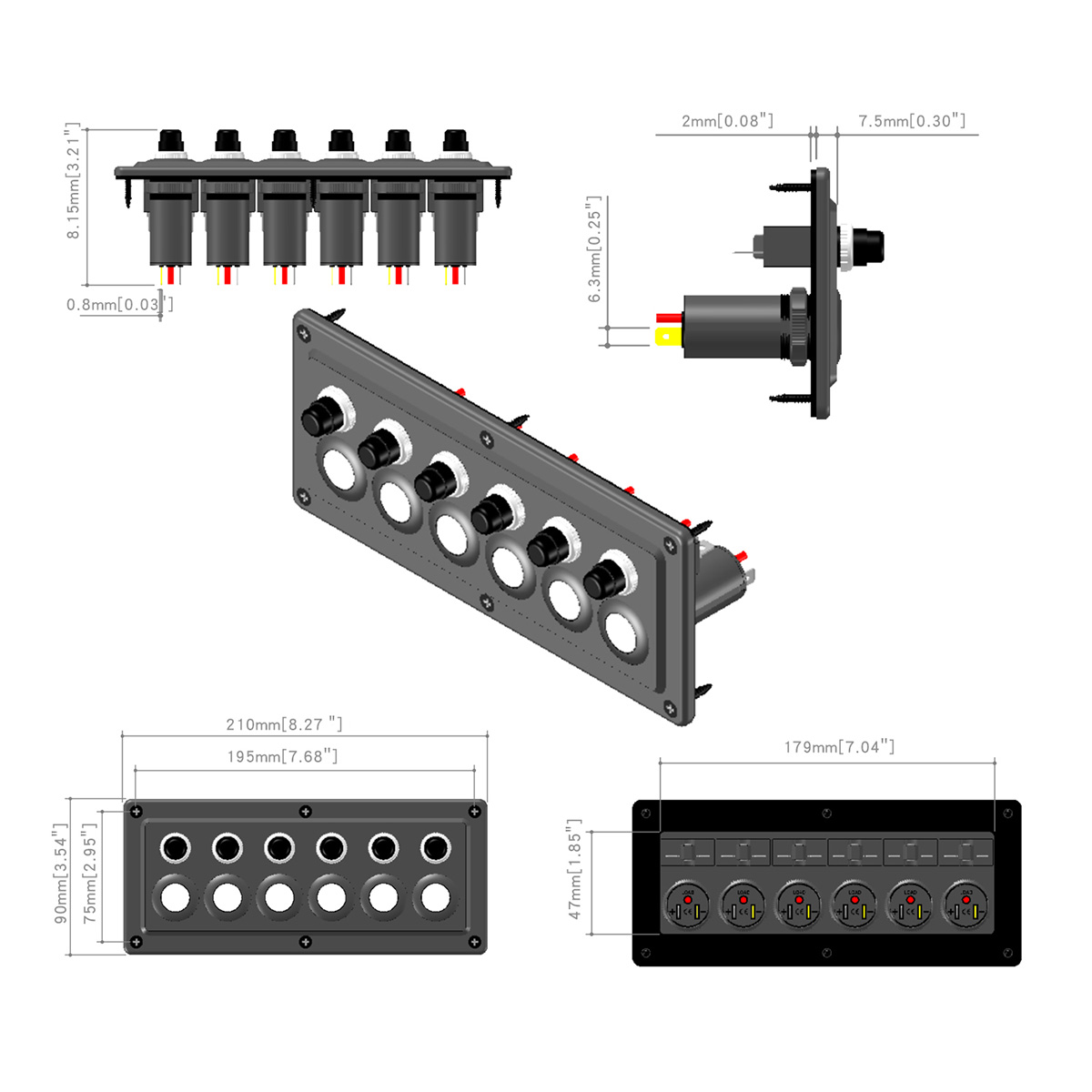

size 21x9x10.2cm
Package 13.1x12.5x28.6cm
Hole distance 17.9x4.7CM

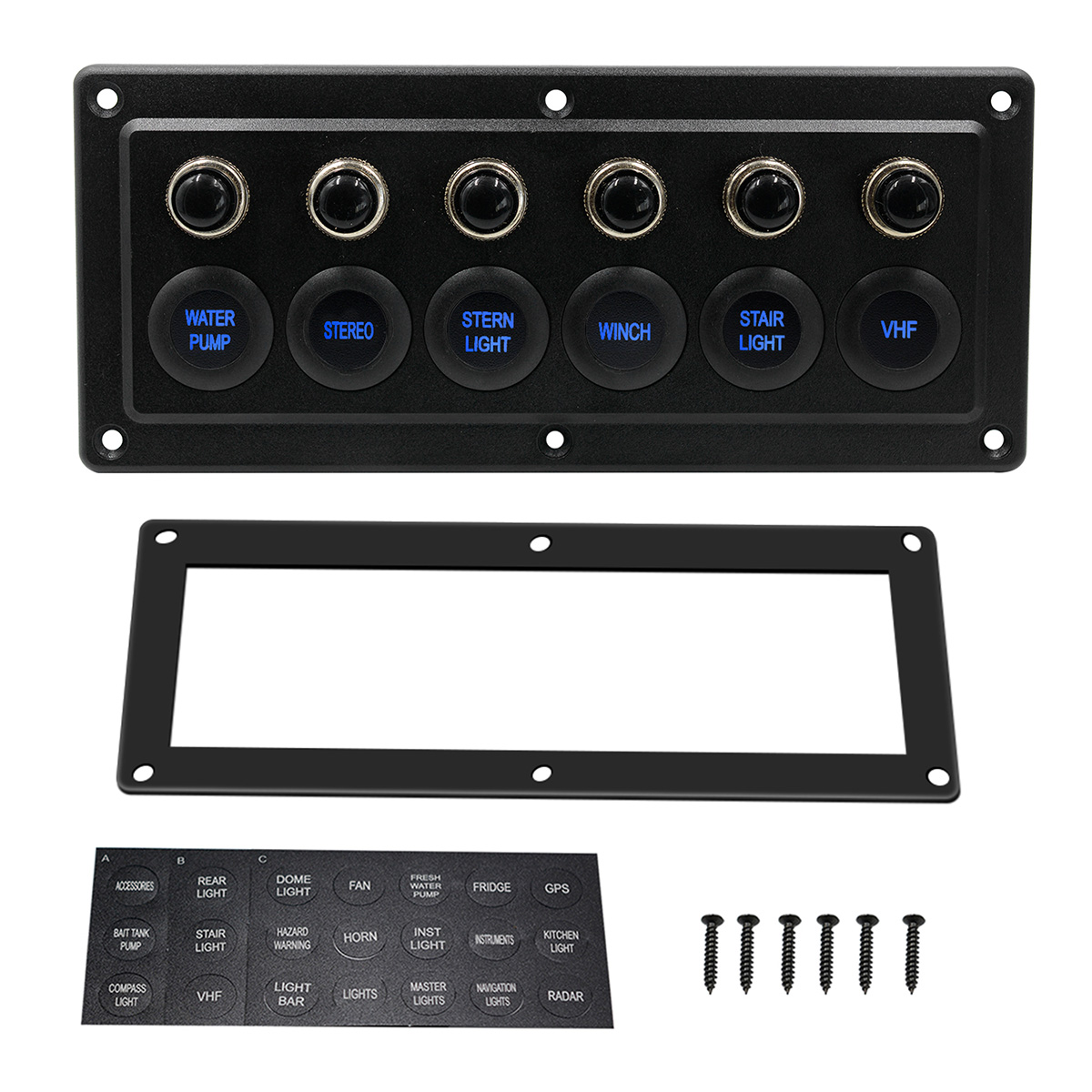

Accessary Screws + stickers
application Car, Truck, steamer, Bus, Semi, RV

[Product advantages]:

[1] The product is a 6-digit single-touch switch panel, including 6 switches, which can control the switch states of 6 electrical appliances at the same time
[2] The input voltage of the product is 12/24V. All ships and vehicles of 12/24V can be installed and used, and the application range is very wide.
[3] The product panel is made of high and low temperature resistant flame retardant environmental protection material, which can be used in an environment where the minimum temperature is -25° and the maximum temperature is 80°

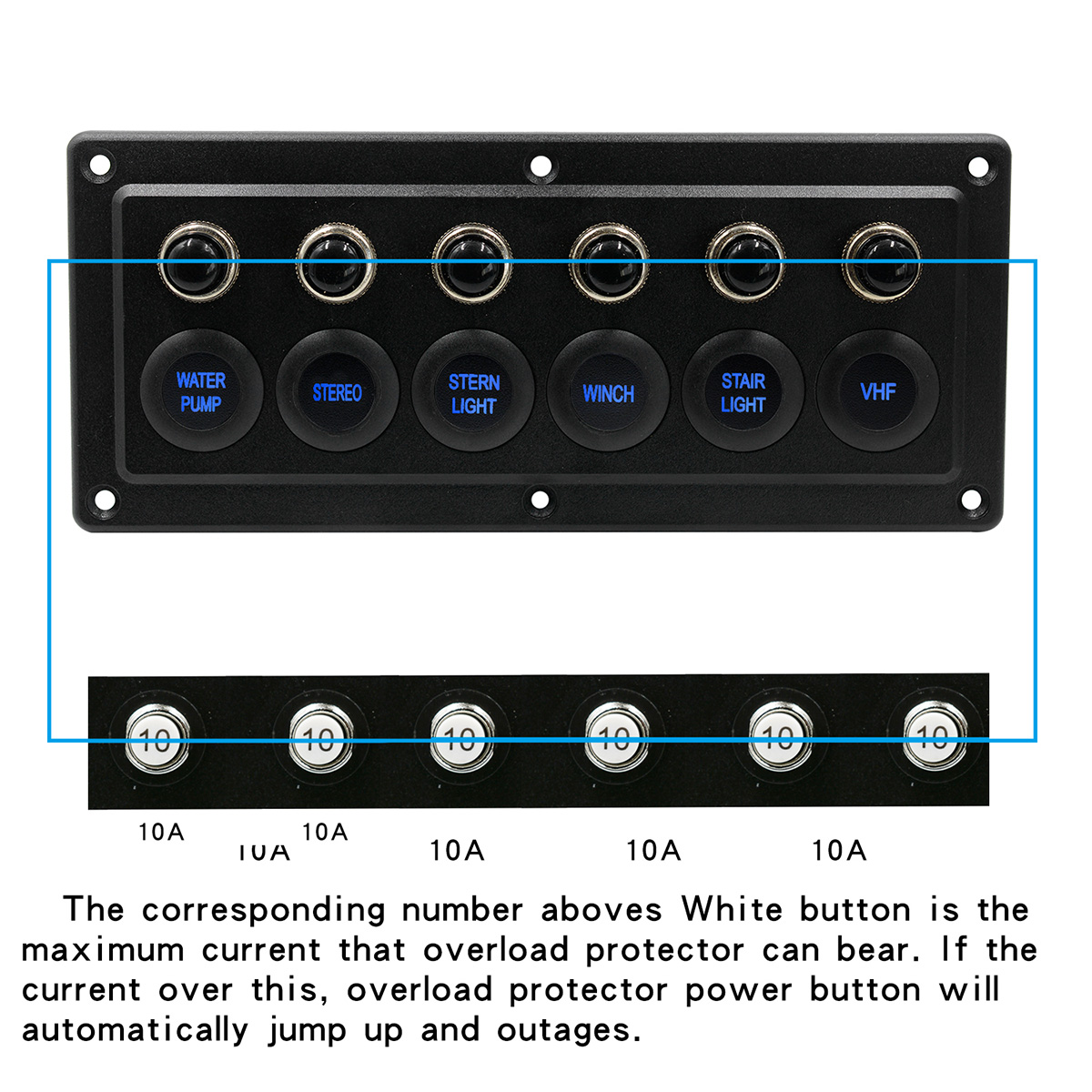

[4] The product is equipped with an overload protector. When the electrical appliance controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically cut off power without causing any damage to the electrical appliance. Press the overload protector again and then The electrical appliances with the corresponding current can be used continuously
